Pedestrian/Crosswalk Stripe - Smart Revit Family

* Experience our new website - BIMxDesign.com for many such more products & discounts. Moving forward, we are going to continue to focus on our BIMxDesign website and this store will be obsolete. Thank you for your understanding!*

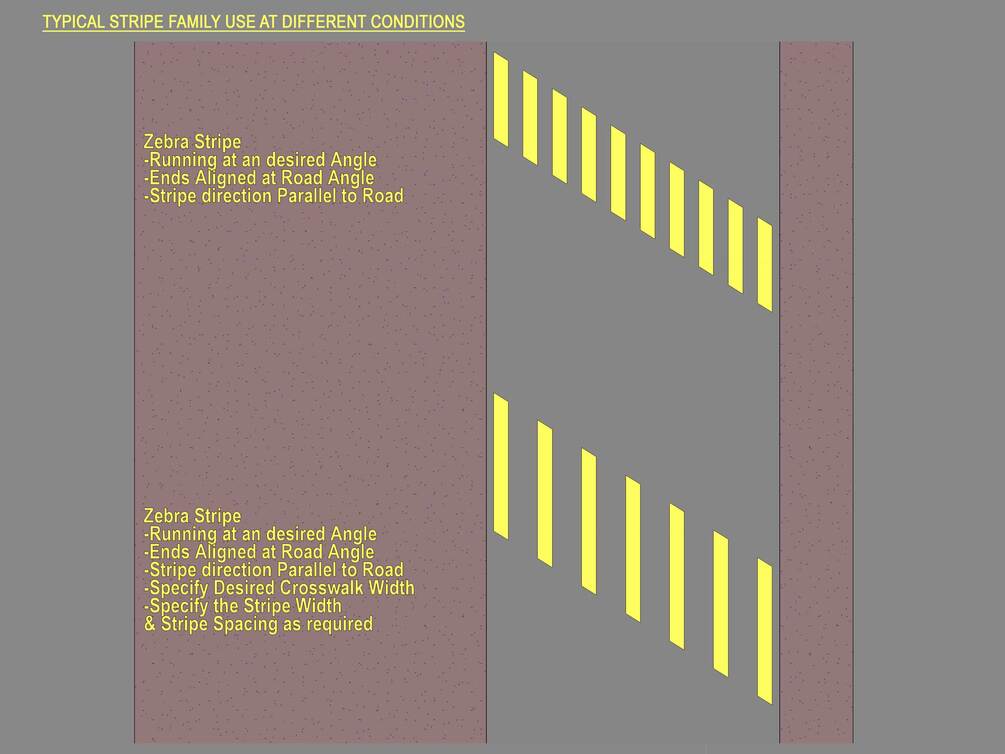

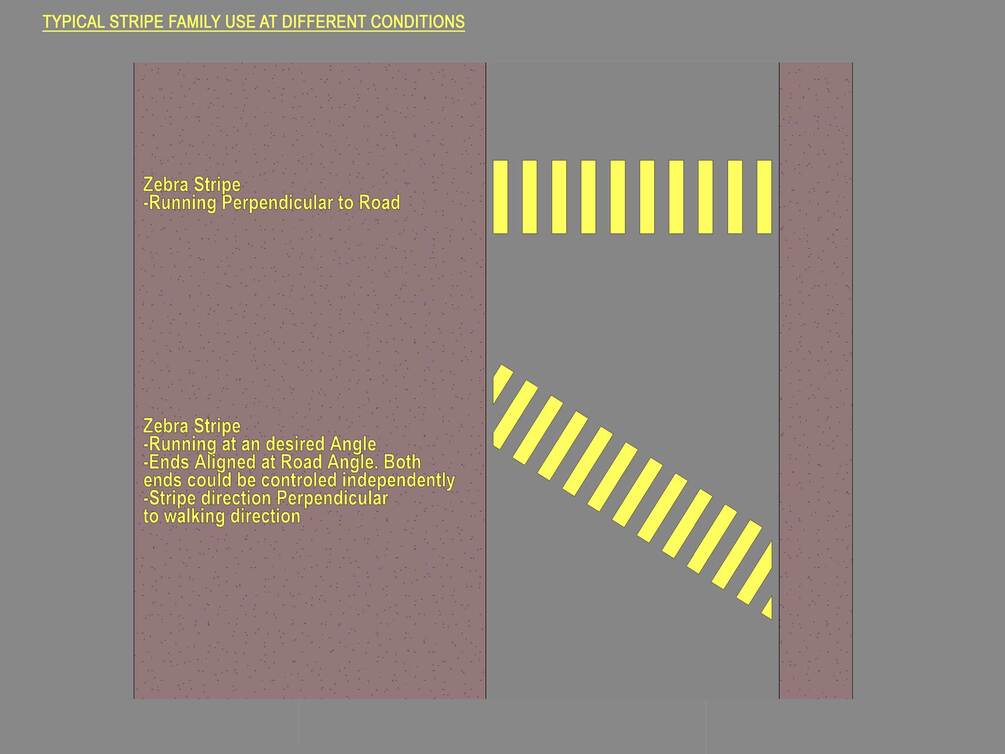

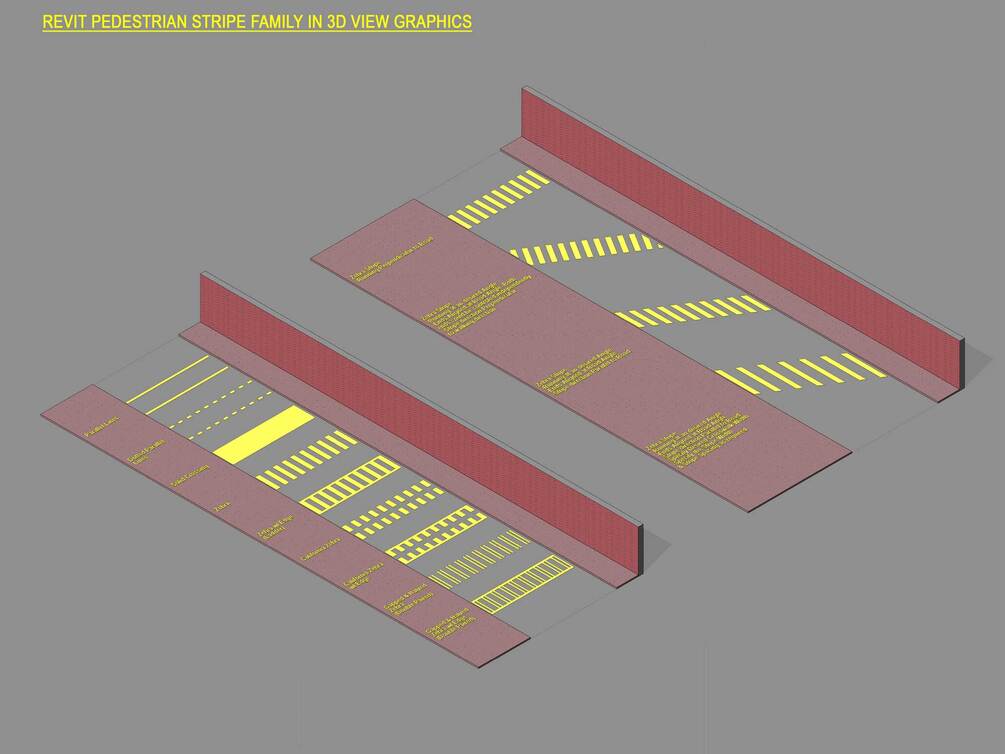

This parametric Pedestrian Stripe Revit Family can create all the different versions of 2D & 3D views that you will need for your next project, helping avoid common coordination errors.

Check the below video to see families in action:

Family Parameters:

-Revit line based family
-Left/Right Pedestrian alignment angle parameter controlled individually based on specific condition
-Left/Right sides offset parameter
-Stripe Width, Spacing, Thickness, Angle, Material and Different type Styles parameters

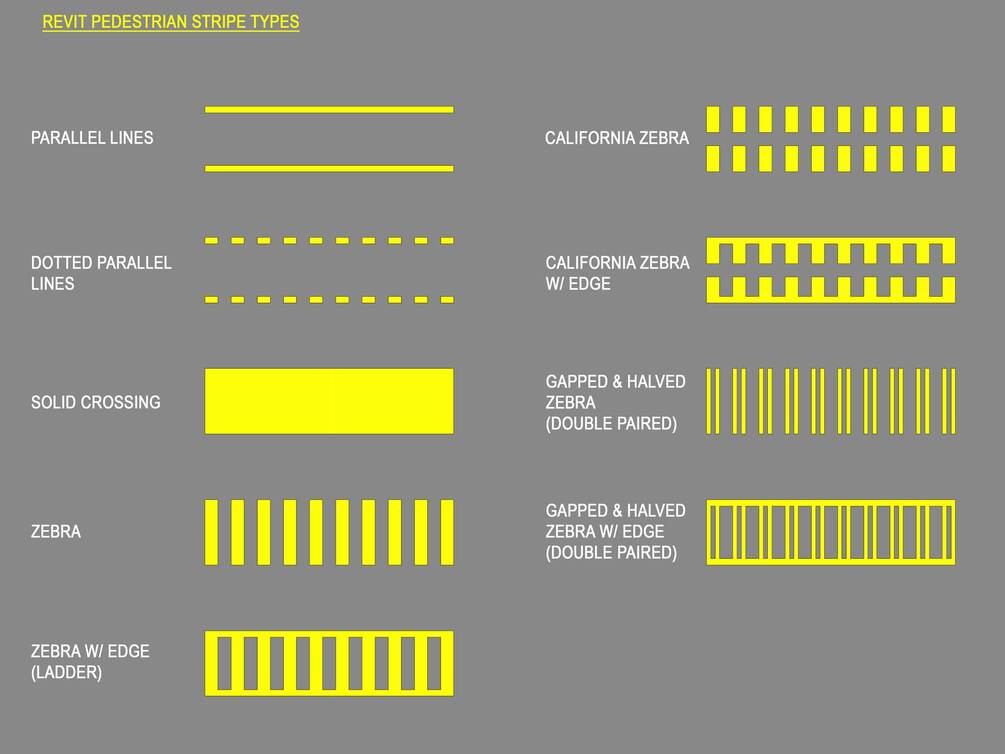

-Single Revit Family creates all different Pedestrian styles. Create new versions or swap between different nested family styles and parameters.

Files with Purchase:

-SITE - Pedestrian Stripe - Revit Family for use
-SITE - Pedestrian Stripe V1-RVT23.rvt - Example Revit Project

Features:

100% Parametric: Ready-to-use fully parametric smart families built inside the Revit family environment.

Full Customization: From annotation symbol to each displayed text is customizable per your office standards.

Ease of Use: Easily create your own version in a flash with logically created Instance/Type parameters within the family. Use everywhere on your project without worry.

Managed BIM: Swap 2D Annotations, 3D fixture models, or materials anytime to add your own version with the in-built Nested Families. Contact us if you need any help!

Consistent around Views: Consistent graphics across the plan, elevation, sections, and 3D

Consistent around Phases: Use the same family from preliminary through the construction documentation

Integrate Everywhere: Easily integrates into office-wide Revit Standards, templates, custom-built families, and applications.
