Graphic Scale & North Arrow - Smart Revit Family

* Experience our new website - BIMxDesign.com for many such more products & discounts. Moving forward, we are going to continue to focus on our BIMxDesign website and this store will be obsolete. Thank you for your understanding!*

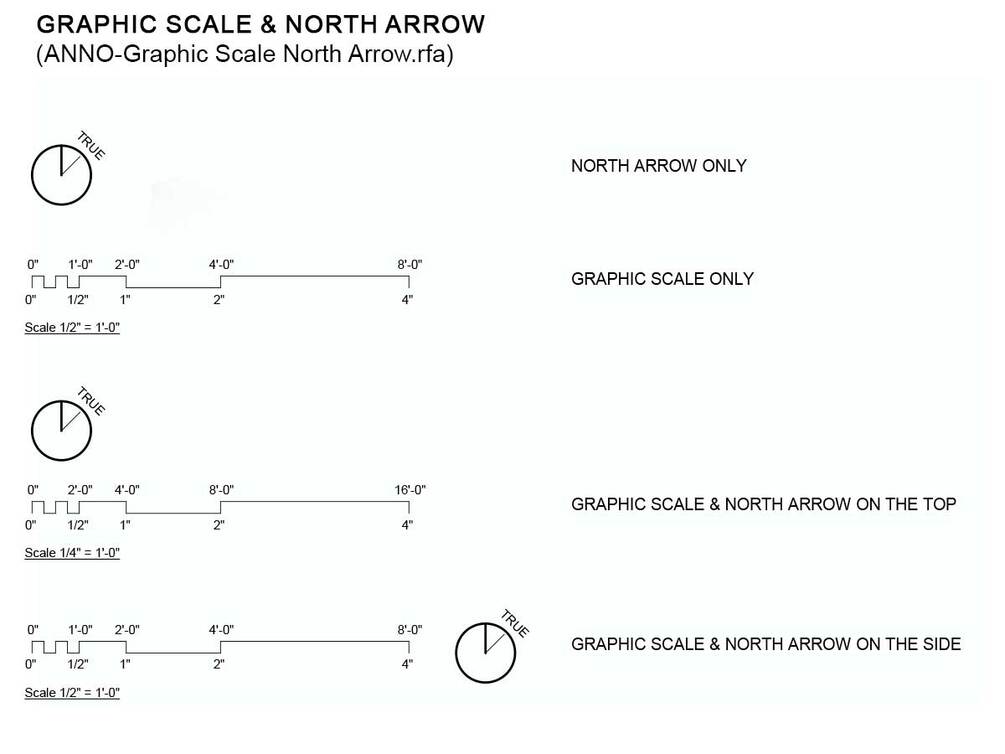

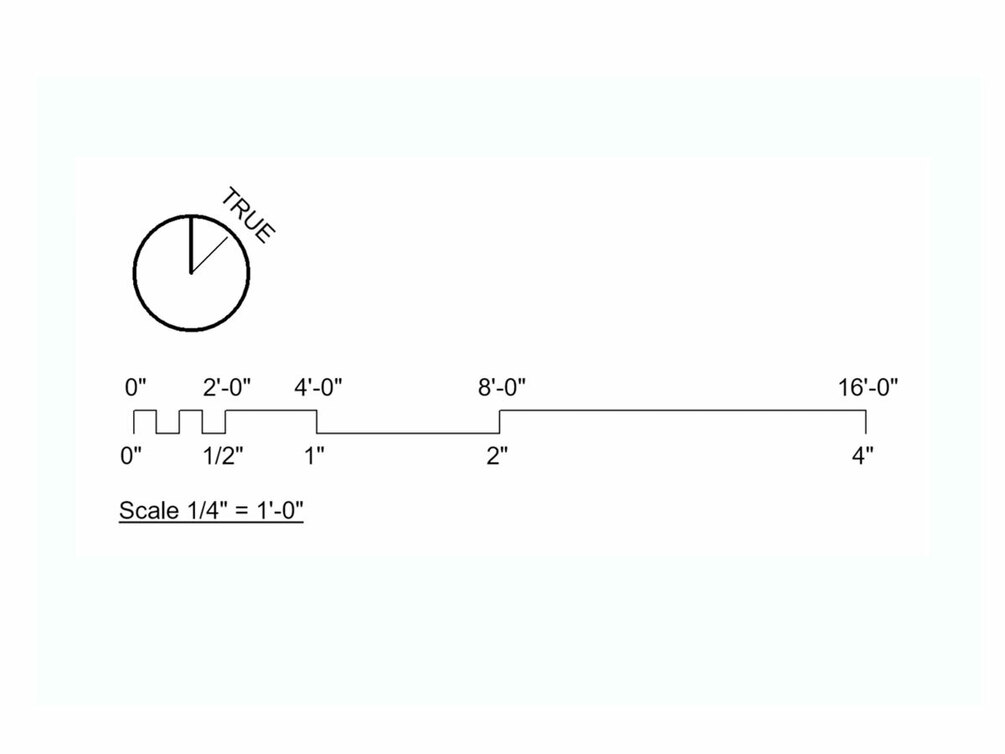

This single Graphic Scale & North Arrow family can create all the different imperial scale types you want to create and consistent graphics across your project. Check the below video to see family in action:

Features:

100% Parametric: Ready-to-use fully parametric smart line-based family built inside the Revit family environment.

Full Customization: Single Family creates all different listed types & more.

Ease of Use: Easily create your own version of Graphic Scale & North Arrow in a flash, with logically created Instance/Type parameters within the family.

Managed BIM: Easily manage in project environment

Consistent around Views: Consistent graphics across different views

Consistent around Phases: Use the same family from preliminary through the construction documentation

Integrate Everywhere: Easily integrates into office-wide Revit Standards, templates, custom-built families, and applications.
