Two-Point Influenced Adaptive Revit Canopy

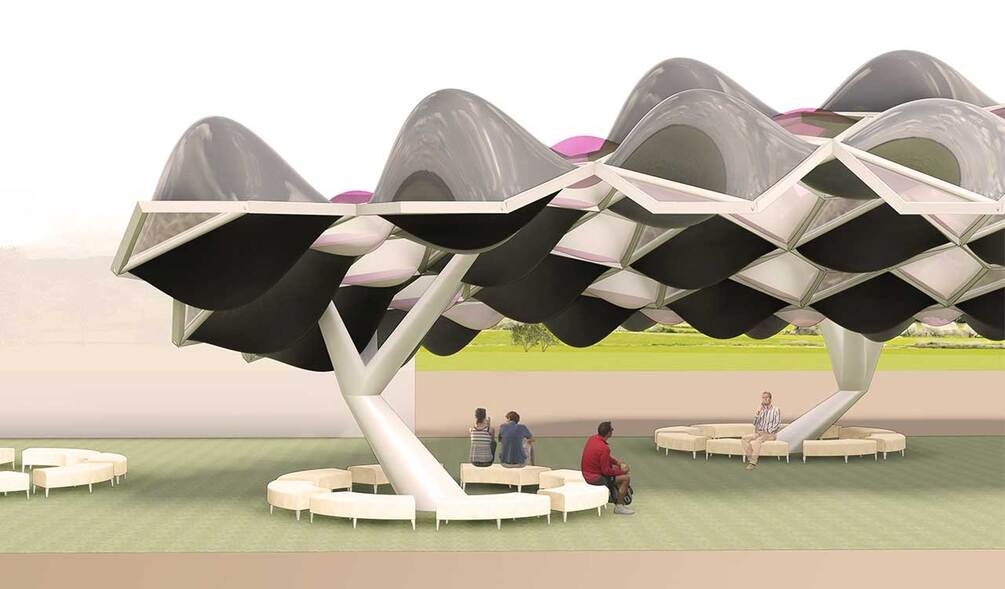

The Objective of the project is to explore reporting and repeating strategies inside adaptive Revit family mass modeling as elements of parametric design as they relate to a responsive facade enclosure and structure with varying points of influence. The concept is derived from the micro-organisms form as inspiration and support them with mushroom-like adaptive variable columns.

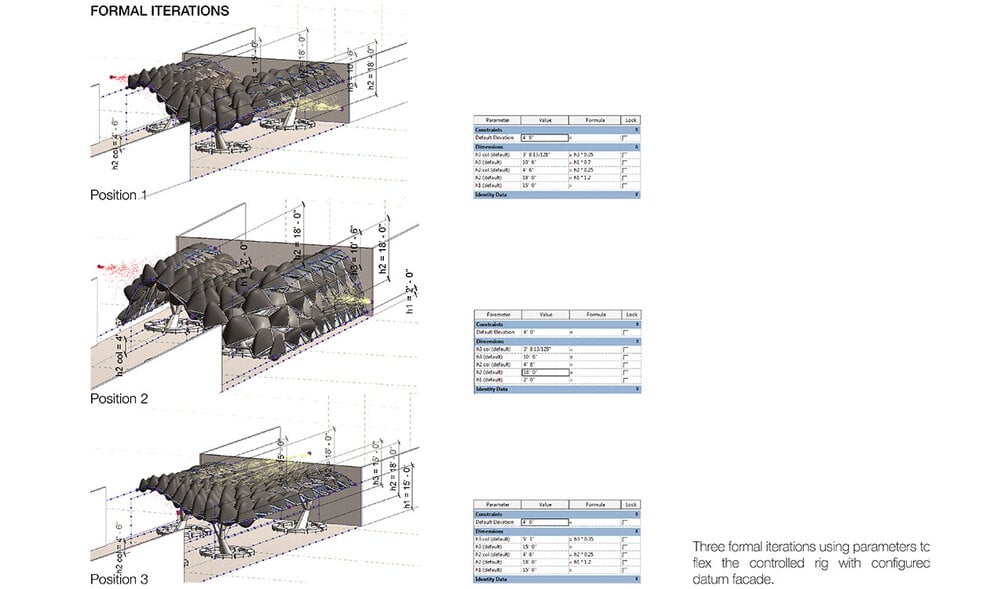

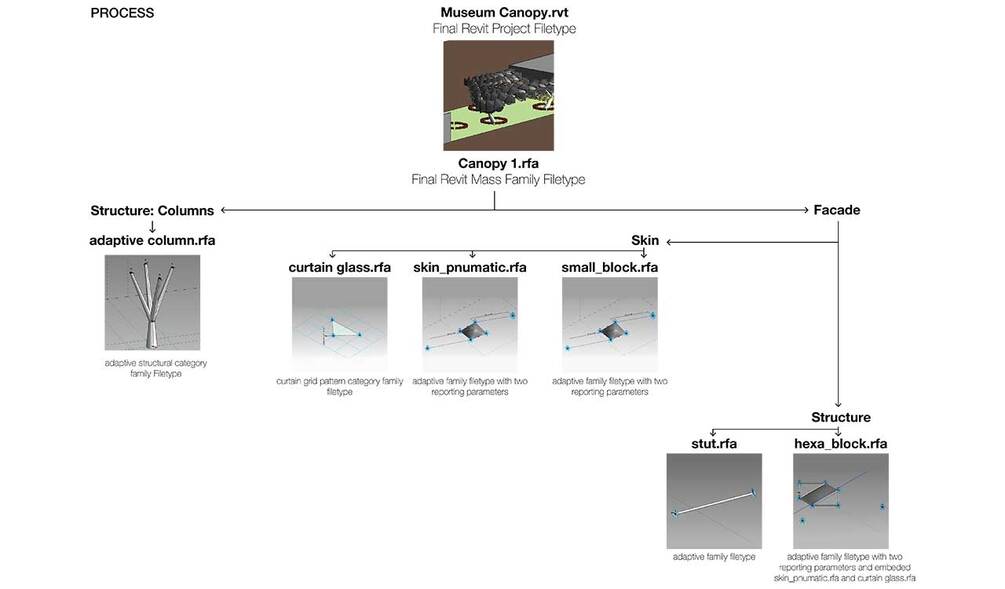

The inflated canopy height is derived from the distance from the two influenced point, which is applied to the mass curtain pattern family. This similar concept can be utilized to create similar families. This package will includes the Revit project file with individual families to create the whole canopy.
