Urinal w/ ADA - Smart Revit Family

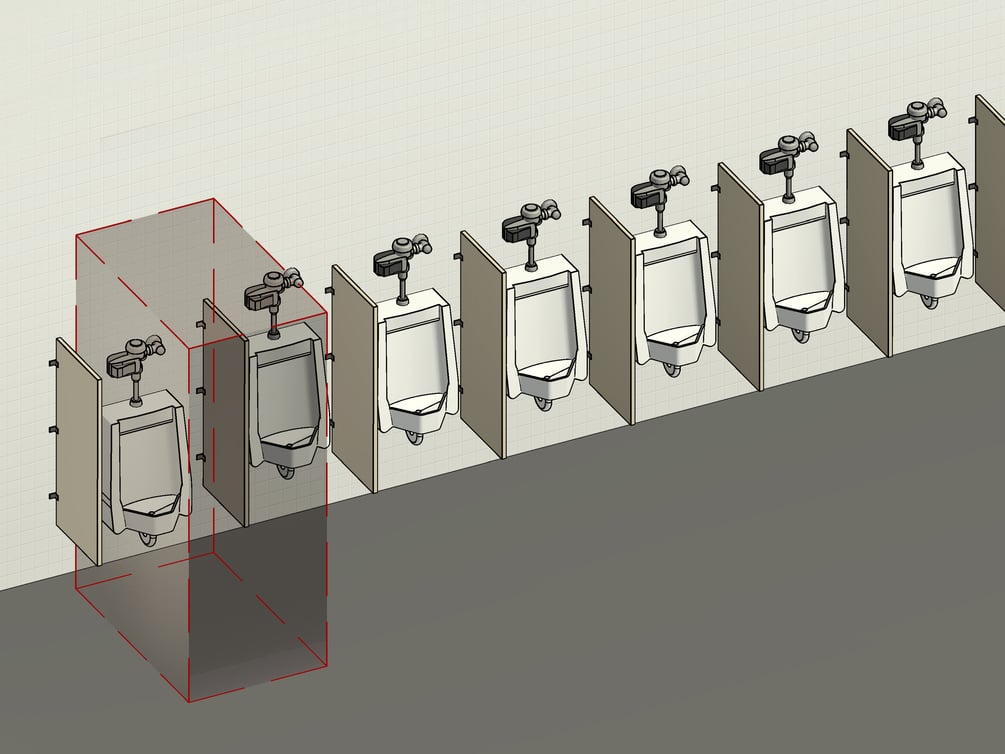

This single Urinal Revit Family can create all the different urinal versions with optional ADA compliant urinals you will need for your next project. Control it with different parameters and create your version with Urinal or panel type substitution. Check the below video to see family in action:

Family Parameters:

-Revit line based Plumbing Fixture family with nested Urinal & partition type
-Show/Hide - First, Last or intermidiate paritions, ADA Urinal Count
-Adjust urinal heights, Distance, Length, Material, etc. on the go
-Swap between Urinal Type & Partition as nested family
-Keynote Tag to Urinal & Partition
-Single Revit Family creates all different styles

Files included with Purchase:

-Urinal with ADA option Line based Revit Family
-Accessories Nested Families:
-Partition Type:
-Urinal Type:
-Example Revit Project

Family Features:

100% Parametric: Ready-to-use fully parametric smart line-based family built inside the Revit family environment.

Full Customization: Single Family creates all different listed types & more.

Ease of Use: Easily create your own version in a flash with logically created Instance/Type parameters within the family.

Managed BIM: Swap 2D Annotations, 3D fixture models, or materials anytime to add your own version with the in-built Nested Families.

Consistent around Views: Consistent graphics across the plan, elevation, sections, and 3D

Consistent around Phases: Use the same family from preliminary through the construction documentation

Integrate Everywhere: Easily integrates into office-wide Revit Standards, templates, custom-built families, and applications.
