Architectural & Mechanical/Pipe Break Line - Smart Revit Families

* Experience our new website - BIMxDesign.com for many such more products & discounts. Moving forward, we are going to continue to focus on our BIMxDesign website and this store will be obsolete. Thank you for your understanding!*

This single Break line Revit Family can create all the different iterations you will need for your next project. Create consistent & headache free break lines for your details all across your project. When your view aligned & consistent across the project sheets, why not break lines?

Content includes architectural break line with iterations and mechanical pipe cross-sections with break lines iterations. Check the below video to see family in action:

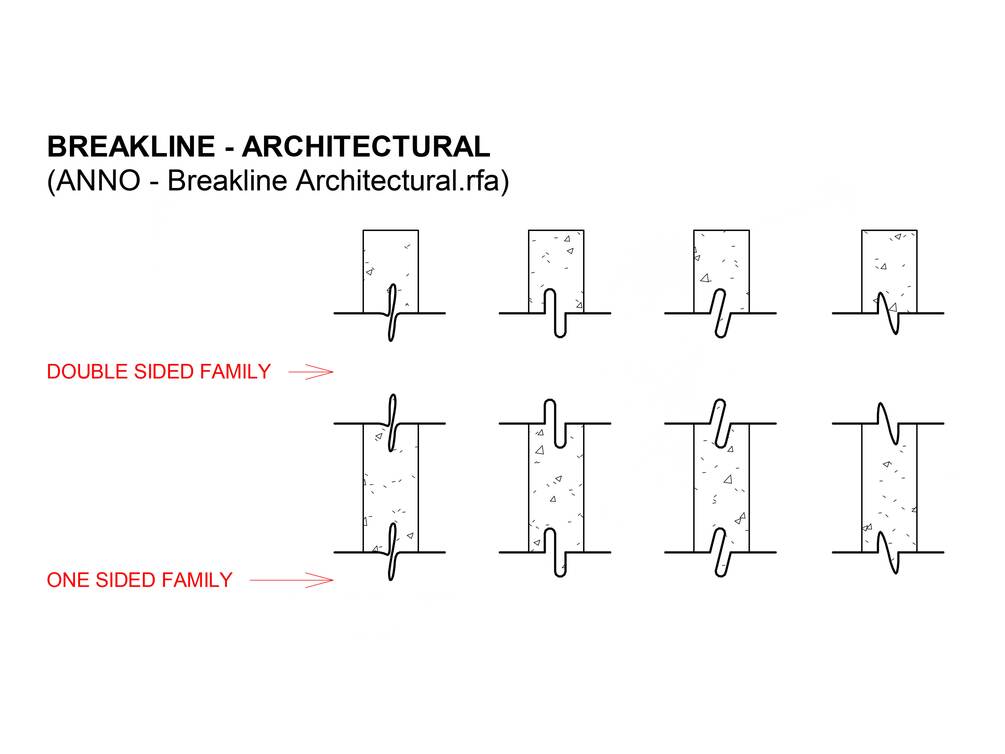

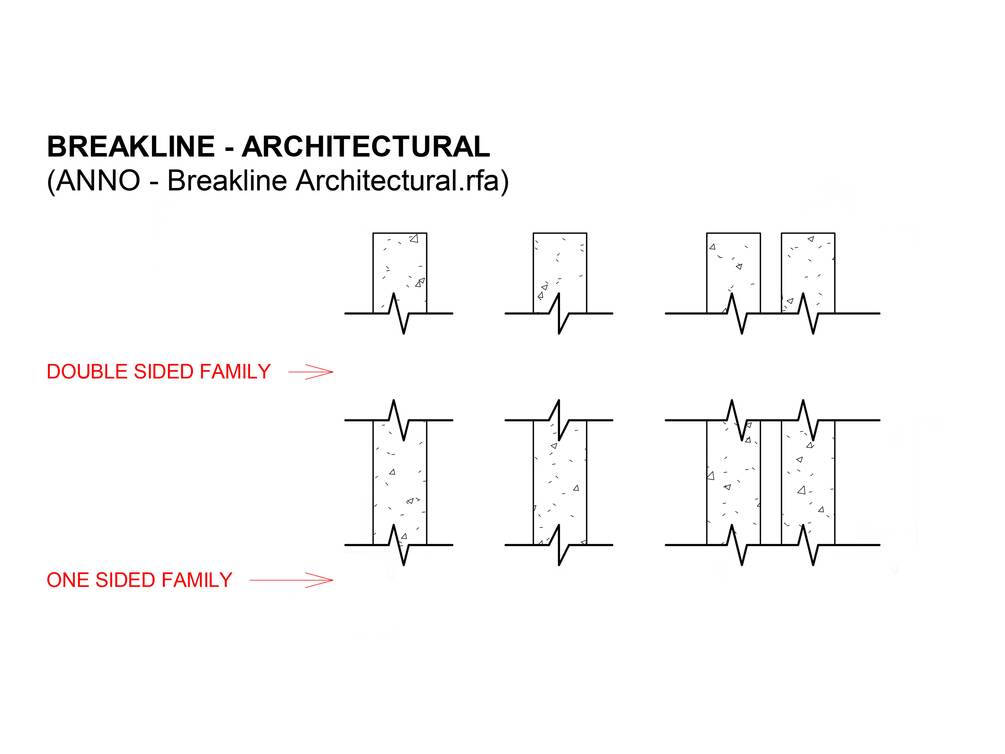

Architectural Break line Symbol:

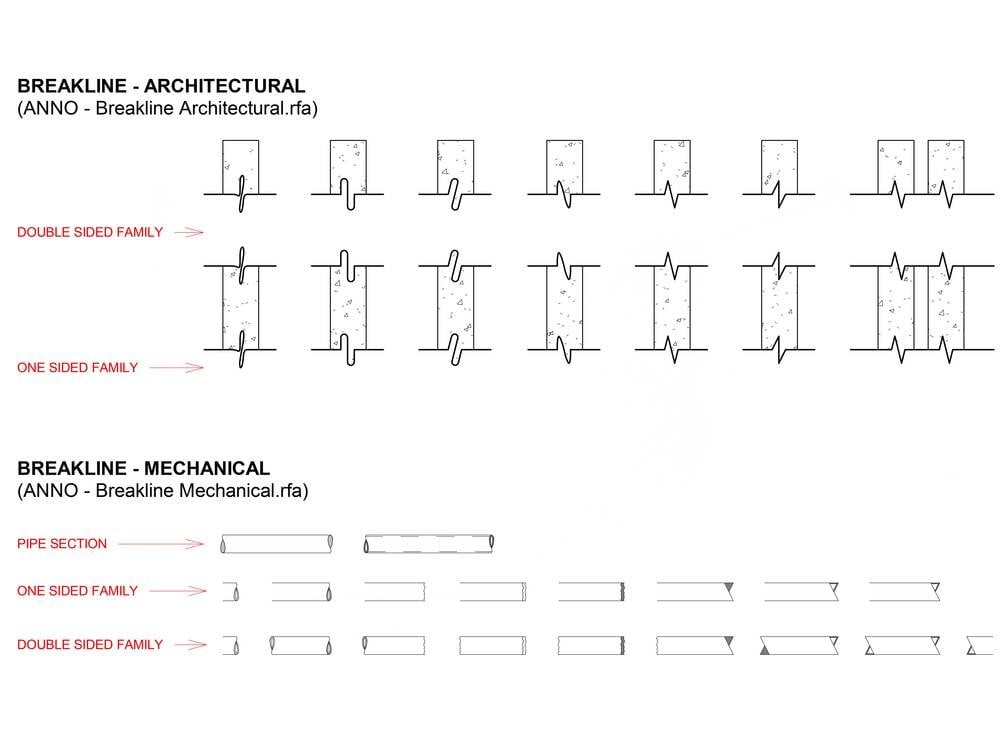

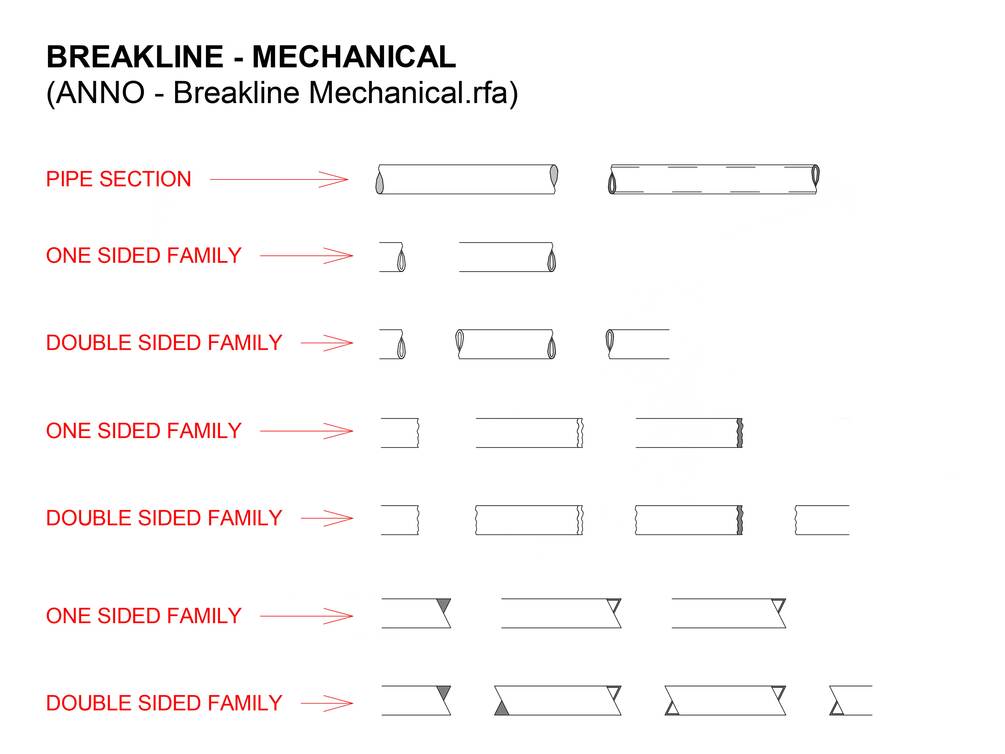

Mechanical Break line Symbol:

Features:

100% Parametric: Ready-to-use fully parametric smart line-based family built inside the Revit family environment.

Full Customization: Single Breakline Family creates all different listed types & more.

Ease of Use: Swap between different breakline symbol iterations or easily customize your own version of Breakline Symbol in a flash with logically created Instance/Type parameters within the family.

Managed BIM: consistent parameters to manage across the whole project.

Consistent around Views: Consistent graphics across the different project views.

Integrate Everywhere: Easily integrates into office-wide Revit Standards, templates, custom-built families, and applications.
